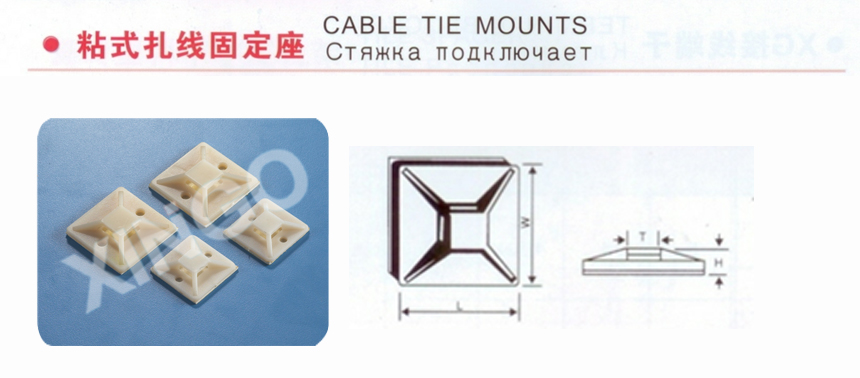

材质:采用UL认可尼龙66料制成,防火等级94V-2,背附进口面海面胶,绝缘性能良好、耐久性、不易老化。
使用方法:将定位片背面双面胶撕开,贴于机板固定,再用扎带捆扎电线。
用途:省时、简便、供面板不可以钻孔时使用。
Material:UL approved Nylon 66,94V-2,with imported adhensivesticker.Good insulation,long lasting and uneasy to age.
How to use:Remove the cover of the adhensive and stick the piece properly,then put in cable tie for using.
Application:Used where hole-driling is not allowed,easy and time-saving.
型号
ITEM NO.
|
长×宽L×W(MM) |
高H
MM |
带孔T
MM |
外箱尺寸
CM |
数量
PCS/CTN |
毛重/净重
KG |
XGS-20 |
20×20 |
6.1 |
5.0 |
52×35×36 |
20000 |
20/18 |
XGS-25 |
25×25 |
7.5 |
6.2 |
52×35×36 |
20000 |
19/17 |
XGS-30 |
30×30 |
8.7 |
6.4 |
54×33×32 |
20000 |
18/16 |
XGS-40 |
40×40 |
6.4 |
108 |
54×35×32 |
20000 |
17/15 |
