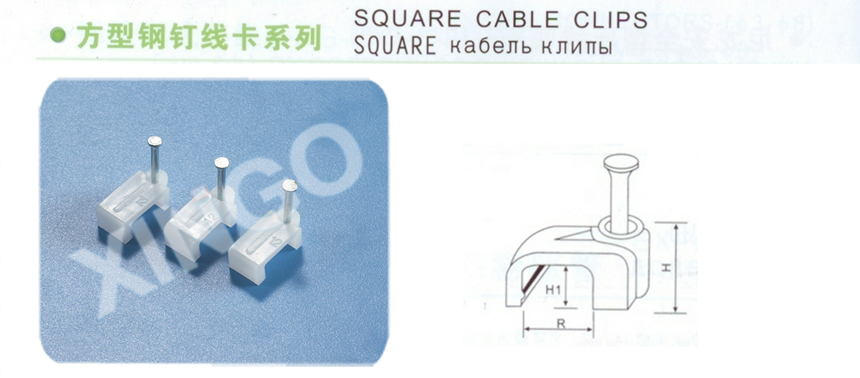

材质：采用PP材料制成，附钢钉。
使用方法：将电线置于卡内，用铁锤将钢钉钉上墙壁上即可将电线固定。
用途：一般室内配固定电线用。
Material:PP，Steel nail
How to use:Put the cable under the cilp and hammer the nail into the wall to sccure the cable.
Application:Securing of cablbes for general indoor wiring.
型号
ITEM NO.
|
外高H
（MM） |
圆径
|
钢钉Nail
MM |
包装
PACKING |
| H1(MM) |
R(MM) |
| 4mm |
6.0 |
3.8 |
4 |
1.7×15 |
100pcs |
| 5mm |
6.0 |
3.8 |
5 |
1.7×15 |
| 6mm |
6.5 |
4.1 |
6 |
1.7×16 |
| 7mm |
7.0 |
4.7 |
7 |
1.9×18 |
| 8mm |
7.5 |
6.0 |
8 |
2.05×20 |
| 9mm |
8.2 |
5.4 |
9 |
2.05×23 |
| 10mm |
8.6 |
5.7 |
10 |
2.3×23 |
| 12mm |
9.0 |
6.1 |
12 |
2.3×25 |
| 14mm |
11.2 |
6.5 |
14 |
2.4×30 |
