Material:UL approved Nylon 66 using material made of fireproof grade 94V-2, acid, corrosion resistance, good insulation, not aging, bear strong.

Color:Standard color is Natural (white),Another anti-ultraviolet radiation outside the black, special colors welcome to order.

Material:Nylon 66,94V-2,certificated by UL,Heat-resisting,erosion control,insulatewell and not apt t age.

Color:Natural(or white,standard color),UV black and other colors are available as requested.

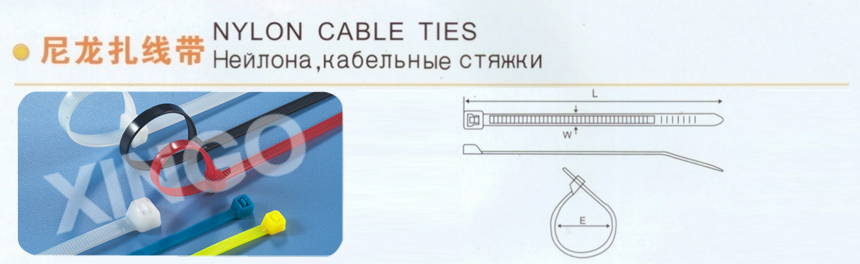

Model ITEM NO	长L		W MM	Binding range E BUNDLE DIAMETER MM	Tolerance TENSILE STRENGTH
Model ITEM NO	INCH	MM	W MM	Binding range E BUNDLE DIAMETER MM	LBS	KGS
XGS-2.2×60 XGS-2.5×80 XGS-2.5×100 XGS-2.5×120 XGS-2.5×150 XGS-2.5×160 XGS-2.5×200	2.4″ 3.2″ 4.0″ 4.7″ 6.0″ 6.3″ 8.0″	60 80 100 120 150 160 200	2.5	2-11 2-16 2-22 2-30 2-35 2-40 2-50	18	8
XGS-3.6×100 XGS-3.6×120 XGS-3.6×150 XGS-3.6×180 XGS-3.6×200 XGS-3.6×250 XGS-3.6×300 XGS-3.6×370	4.0″ 4.7″ 6.0″ 7.1″ 8.0″ 10″ 12″ 14.6″	100 120 150 180 200 250 300 370	3.6	3-22 3-30 3-35 3-42 3-65 3-70 3-80 3-85	40	18
XGS-4.8×100 XGS-4.8×120 XGS-4.8×150 XGS-4.8×180 XGS-4.8×200 XGS-4.8×250 XGS-4.8×300 XGS-4.8×370 XGS-4.8×100 XGS-4.8×120 XGS-4.8×150 XGS-4.8×180 XGS-4.8×200 XGS-4.8×250 XGS-4.8×300 XGS-4.8×350 XGS-4.8×370 XGS-4.8×400 XGS-4.8×450 XGS-4.8×500 XGS-4.8×650 XGS-4.8×760	4.0″ 4.7″ 6.0″ 7.1″ 8.0″ 10″ 12″ 14.6″ 4.0″ 4.7″ 6.0″ 7.1″ 8.0″ 10″ 12″ 14″ 14.6″ 16″ 18″ 20″ 25.6″ 30″	100 120 150 180 200 250 300 370 100 120 150 180 200 250 300 350 370 400 450 500 650 760	4.8	4-22 4-30 4-35 4-50 4-50 4-65 4-80 4-85 4-22 4-30 4-35 4-50 4-50 4-65 4-80 4-82 4-65 4-105 4-118 4-150 4-185 4-200	50	22
XGS-7.6×200	8.0″	200	7.6	5-50	120	55
XGS-7.6×250	10″	250	7.6	5-65
XGS-7.6×300	12″	300	7.2	5-80
XGS-7.6×350	14″	350	7.6	5-82
XGS-7.6×370	14.5″	370	7.6	5-85
XGS-7.6×400 XGS-7.6×450 XGS-7.6×500 XGS-7.6×550	16″ 18″ 20″ 21.6″	400 450 500 550	7.6	5-105 5-118 5-150 5-160
XGS-8.8×400 XGS-8.8×450 XGS-8.8×500 XGS-8.8×550 XGS-8.8×600 XGS-8.8×650 XGS-8.8×700 XGS-8.8×760 XGS-8.8×800 XGS-8.8×900 XGS-8.8×1000	16″ 18″ 20″ 21.6″ 23.6″ 25.6″ 27.6″ 30″ 31.5″ 35.5″ 39.4″	400 450 500 550 600 650 700 750 800 900 1000	8.8	6-105 6-118 6-105 6-160 6-170 6-185 6-190 6-200 6-230 6-265 6-300	170	75
XGS-9.0×1200	47.3″	1200	9.0	7-330	175	79.4
XGS-12×600 XGS-12×650	24″ 26″	600 650	12 12	6-170 6-165	180 180	83 83
XGS-9×1350 XGS-9×1350 XGS-9×1350 XGS-9×1350 XGS-9×1350 XGS-9×1350 XGS-9×1350 XGS-9×1350 XGS-9×1350 XGS-9×1350	299/16″ 173/4″ 1911/16″ 115/8″ 153/4″ 211/4″ 259/16″ 299/16″ 303/4″ 211/4″	1350 450 500 300 400 540 650 750 780 540	9.0 12.7 12.7 12.7 12.7 12.7 12.0 12.0 12.7 13.0	10-380 10-125 12-150 12-105 12-155 14-190 14-190 10-220 14-230 14-155	175 250 250 250 250 250 250 250 250 250	88 114 114 114 114 114 114 114 114 114
