Yueqing Xinguang Plastics Co.,Ltd.-read

材质：采用PE料制成
使用方法：先用保护袋固定起点一端，然后按顺时针方向环绕竖紧，即可将电线束为一体。
用途：做为保护电线不受磨损及绝缘用，并可改进电线弯曲的美观。

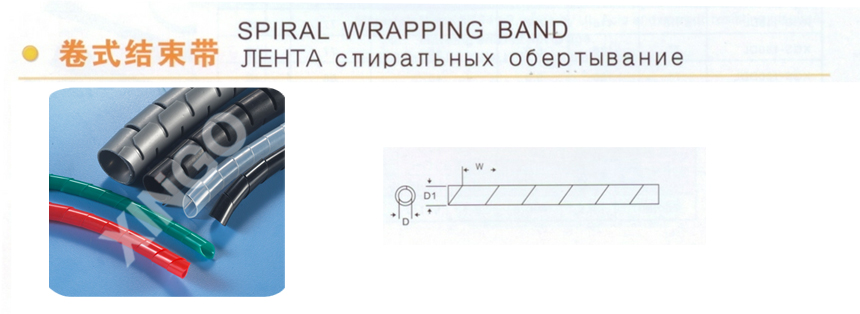

Material:Made from PE
Usage:fix one end with safety belt first ,then circle the wires clockwise to make them tighen.
Application:a protection wear for electric wires,and make them insulation and look nice.

型号 ITEM NO.	内径 D	外径 D1	螺距 W	结束可能范围 WRAPPING RANGE (mmΦ)	包装 PACKING
XGS-6	4	6	7.0	4×50	10m
XGS-8	6	8	10.8	6×60
XGS-10	7.5	10	11.4	7.5×60
XGS-12	9	12	13.9	9×65
XGS-16	13	16	15.0	12×70
XGS-20	16	20	18.2	15×100
XGS-25	21	25	19.6	20×130
